薄膜チップ抵抗器

ハイエンド製品に最適なワイヤーボンディングタイプの薄膜チップ抵抗器です。
カタログ品として豊富なラインナップを揃えることで、高いコストパフォーマンスとリードタイム短縮を実現します。

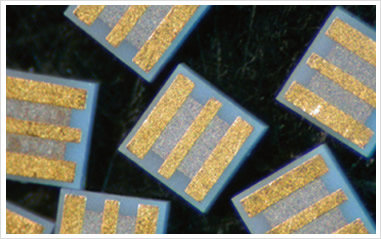

外観

電極構成

表面 : TaN - TiW - Au
裏面 : TiW - Pt - Au

型番例

製品リスト

型番 抵抗値(Ω) 抵抗値コード サイズ(mils)
L × W
サイズ(mm)
L × W
外観
SAW100K2A21H 10 100 20 × 20 0.50 x 0.50 SA Series - 1
SAW250K2A21F 25 250 16 × 16 0.40 x 0.40 SA Series - 1
SAW250K2A21H 25 250 20 × 20 0.50 x 0.50 SA Series - 1
SAW500K2A21F 50 500 16 × 16 0.40 x 0.40 SA Series - 1
SAW500K2A21H 50 500 20 × 20 0.50 x 0.50 SA Series - 1
SAW500K2A21HR 50 500 20 × 40 0.50 x 1.00 SA Series - 1
SAW500K2A21P 50 500 31 × 31 0.80 × 0.80 SA Series - 1
SAW750K2A21HR 75 750 20 × 40 0.50 × 1.00 SA Series - 1
SAW101K2A21H 100 101 20 × 20 0.50 x 0.50 SA Series - 1
SAW101K2A21HR 100 101 20 × 40 0.50 × 1.00 SA Series - 1
SAW201K2A21H 200 201 20 × 20 0.50 x 0.50 SA Series - 2
SAW102M2A21H 1000 102 20 × 20 0.50 x 0.50 SA Series - 3
MBW200K2A21P 10 × 2 200 31 × 31 0.80 × 0.80 MB Series
MBW250K2A21P 12.5 × 2 250 31 × 31 0.80 × 0.80 MB Series
MBW500K2A21P 25 × 2 500 31 × 31 0.80 × 0.80 MB Series
MBW750K2A21P 37.5 × 2 750 31 × 31 0.80 × 0.80 MB Series
MBW101K2A21P 50 × 2 101 31 × 31 0.80 × 0.80 MB Series

抵抗温度特性(TCR)

- 100 + / - 50 ppm / °C (@ - 55 °C to + 85 °C)

抵抗定格電力

100 mW @ < 70 °C

耐熱性

320℃ × 5min Max N2ガス雰囲気中
