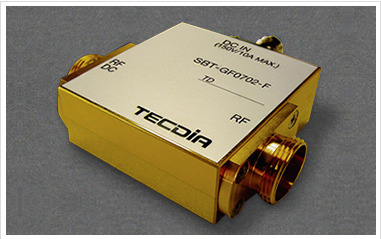

宽频带、高电流Bias-T
SBT-GF 系列
产品规格
| Bias-T Model | |||
| SBT-GF0702-F | |||
| Frequency Range | 2～7GHz | ||
| Impedance | 50Ω | ||
| VSWR (Return Loss) | 1.22 max. (20dB min.) | ||
| Insertion Loss | 0.5dB max. | ||
| Connectors | RF | APC-7 | |
| DC | BNC-R (Female) | ||
| RF Power | 50W max. | 100W max. | |
| Bias Current | 20A max. | 10A max. | |
| Bias Voltage | 30V max. | 150V max. | |
| Dimensions * | 50×52×20mm | ||
| Weight | 200g | ||
| Temperature | 0℃～ +40℃ | ||
*不包括连接器

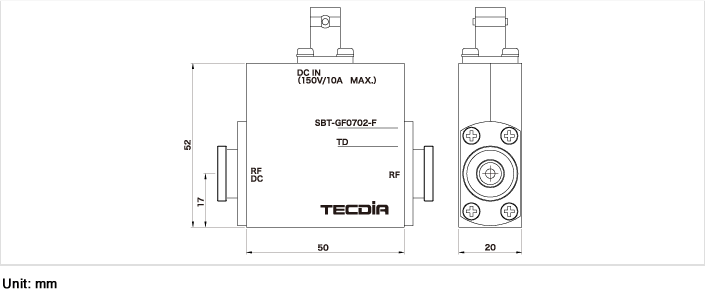

形状
SBT-GF0702-F

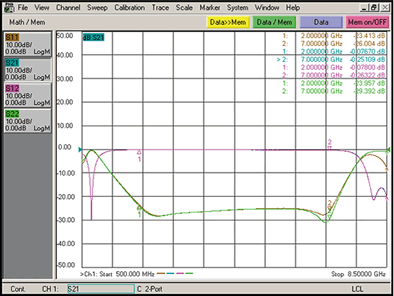

插入损耗和反射损耗的代表特性
SBT-GF0702-F
