宽频带、高电流Bias-T
SMBT 系列 (表面封装型Bias-T)
产品规格
| Bias-T Model | |||||
| SMBT-06M20□*1-F | |||||
| Impedance | 50Ω | ||||
| Frequency Range | 20MHz～6GHz | ||||
| 20～50MHz | 50MHz～2GHz | 2～3GHz | 3～6GHz | ||
| VSWR (Return Loss) | 1.5 max. | 1.22 max. | 1.28 max. | 1.4 max. | |
| (14.0dB min.) | (20.0dB min.) | (18.0dB min.) | (15.5dB min.) | ||
| Insertion Loss | 0.8dB max. | 1.0dB max. | |||
| RF Power | 5W max. | ||||
| Bias Current | 2A max. | ||||
| Bias Voltage | 50V max. | ||||
| Dimensions *2 | 20×10×5mm | ||||
| Weight | 2g | ||||
| Temperature | -40℃～ +90℃ | ||||
*1 Left/Right Connection Available
*2 Excluding Connectors

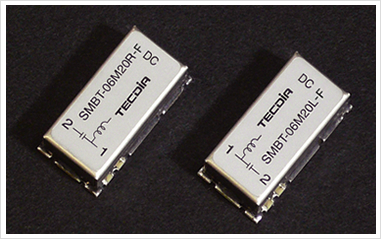

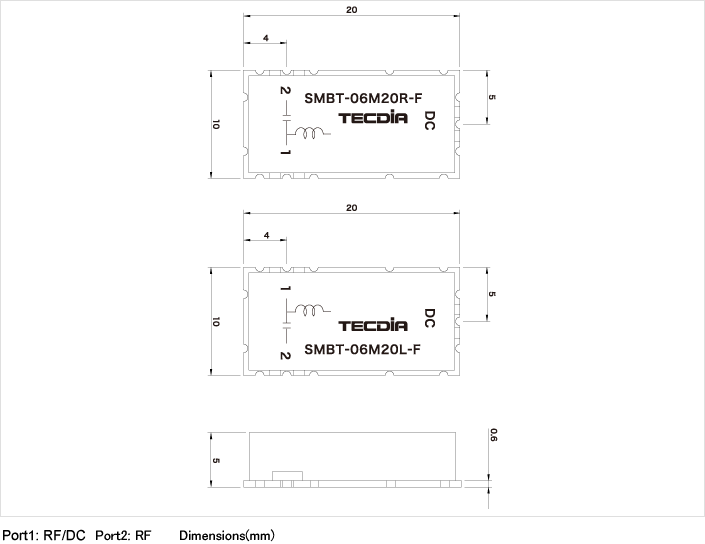

形状
SMBT-06M20□-F

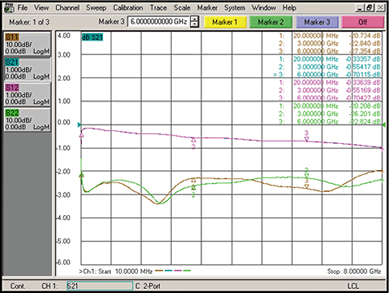

插入损耗和反射损耗的代表特性
SMBT-06M20□-F

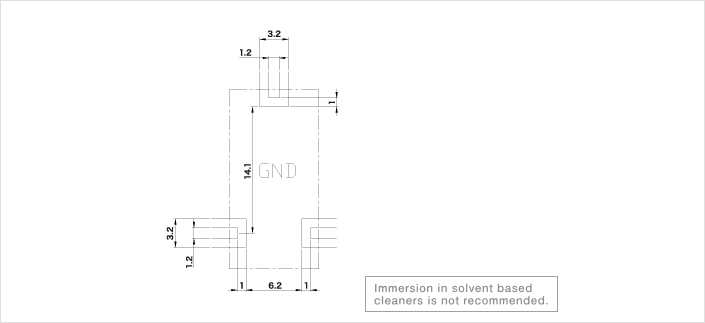

SMBT-06M20□-F 推荐Foot Pattern
